FRP post
Extruded composite section; set in a 12" drilled pier, 36" below grade.
SECURITY FENCING · AVBD 1200
AVBD 1200PRODUCT DATA
ENC Security Fence
ELECTRICALLY NON-CONDUCTIVE FRP PERIMETER SYSTEM
A security fence that carries no current, corrodes in no climate, and lets radar and radio pass through it. Every production batch is flash-over tested to a minimum of 138,000 volts. Forced-entry tested to ASTM F2781-15.
FLASH-OVER TESTED, EVERY BATCHASTM F2781-15RF TRANSPARENTMADE IN THE USA
THE CASE FOR NON-CONDUCTIVE
STEEL IS A CONDUCTOR. THAT'S THE PROBLEM.
Inside a substation fence line, a steel fence becomes part of the electrical environment and must be bonded, grounded and inspected. An FRP fence is not part of that circuit. ENC uses non-conductive FRP posts and panels, with every production batch flash-over tested by a certified laboratory.
The system also carries independently measured forced-entry performance under ASTM F2781-15 and is engineered for project-specific wind loading.
TESTED ON EVERY BATCH
138,000 V MINIMUM FLASH-OVER TEST.
Batch-specific test results are available for the material supplied.

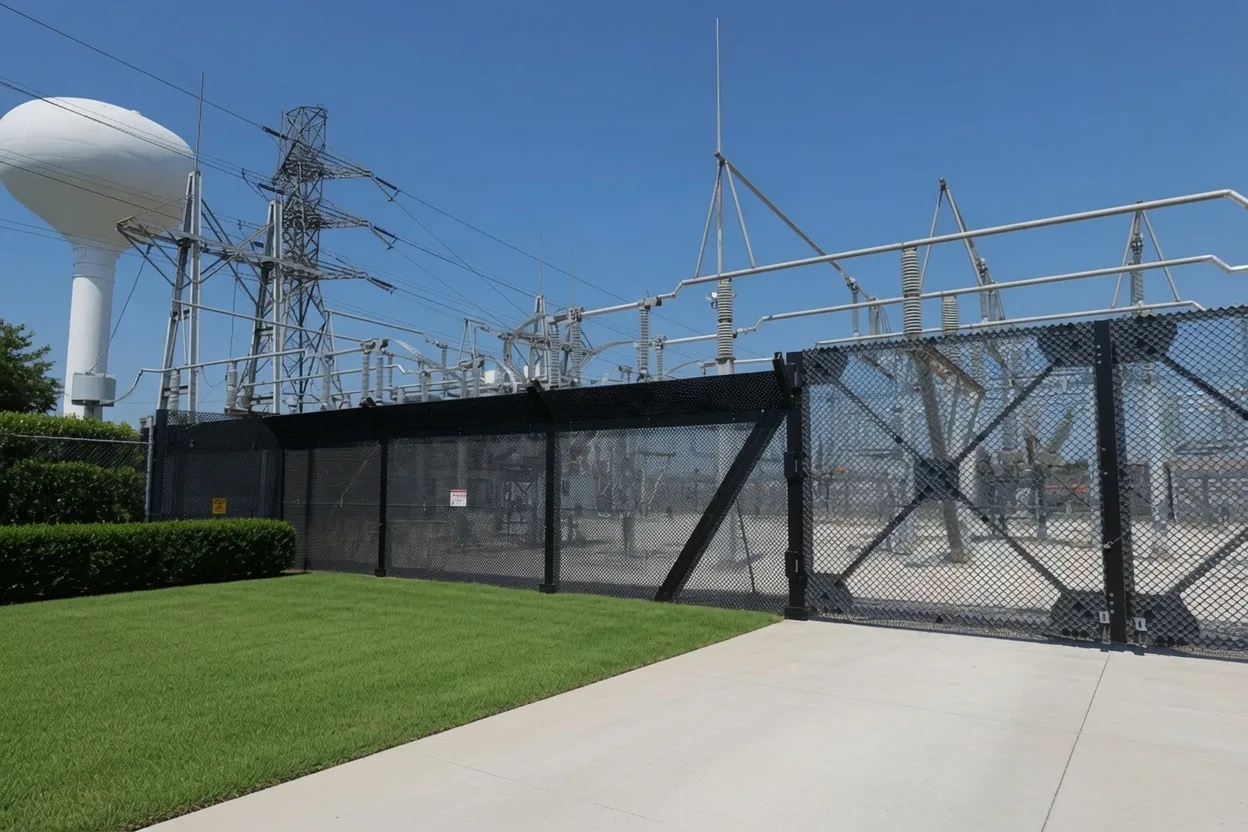

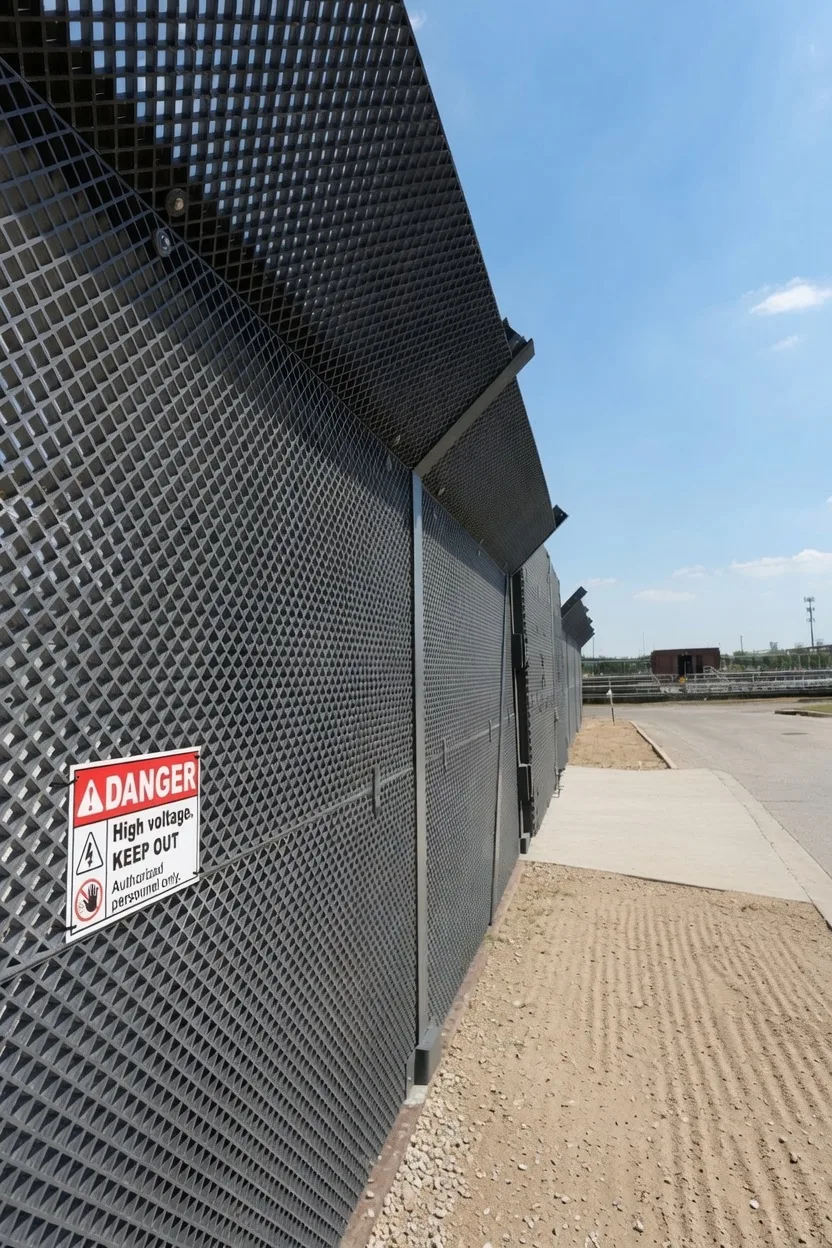

AVBD 1200 FRP fence inside an energized yard - non-conductive, no ground-grid bonding required by the material.
138kV
MINIMUM FLASH-OVER · EVERY BATCH
650kV
MAXIMUM TESTED
0
GROUND-GRID BONDING REQUIRED BY MATERIAL
0
HOT WORK OR CRANE PERMITS FOR STANDARD SYSTEM
SYSTEM ANATOMY
POSTS, PANELS, AND NOTHING THAT RUSTS.
Molded panel
1½" square mesh, 1" thick, dark gray; standard 4′×8′ and 4′×12′.
Clamp blocks
Trap panel against both faces of the post with threaded fasteners.
316 SS hardware
Stainless throughout, mounted on secure side.

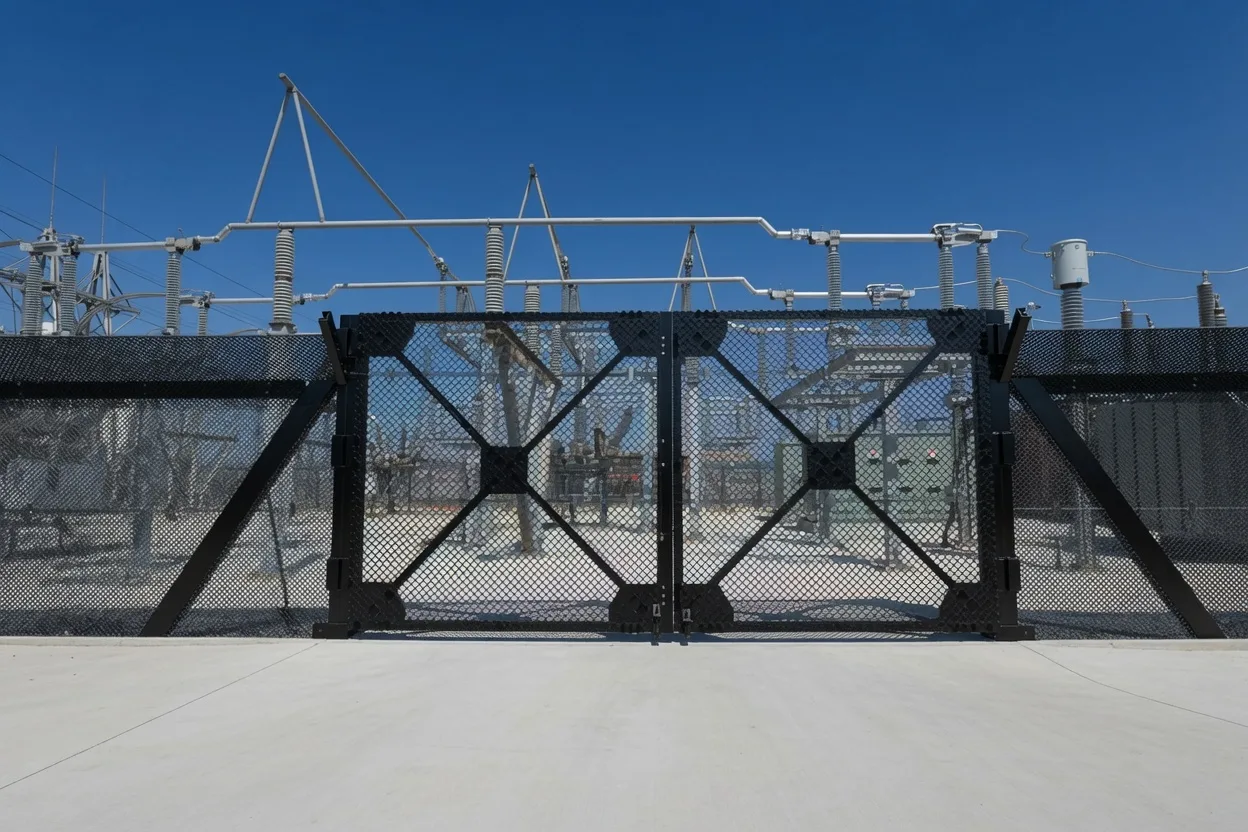

CONFIGURATION & GATES
NON-CONDUCTIVE BY DESIGN.
| Model / AVBD | Configuration / Threat | Standard | Notes |
|---|---|---|---|
| AVBD 1200 | Non-conductive | ASTM F2781-15 | ENC Security Fence; FRP non-conductive perimeter. |
| AVBD 1300 | Ballistic | UL 752 Levels 1–8 | Ballistic option is a separate catalog product; included here only as related option, not as AVBD 1200 rating. |
12
Family12 = ENC composite / expanded metal
0
Threat Rating0 = non-conductive, non-crash
0
ConfigurationBase configuration. See Configurations for related options.
Read any AVBD number the same way across the line: family, then threat rating, then configuration. AVBD 1200 is the ENC composite fence family (12), non-conductive rather than crash rated (0), base configuration (0).
NON-CONDUCTIVITY VERIFIED
TESTED ON EVERY BATCH. NOT ONCE.
ASTM F2781-15Flash-over voltage testASCE 7RF transparentBuy American
Certified laboratories perform flash-over voltage testing on every production batch, to a minimum of 138,000 V; the brochure cites a maximum tested value of 650,000 V. Forced-entry testing was performed by Southwest Research Institute to ASTM F2781-15 at the aggressive threat level. Batch results and the SwRI report are available for submittal.
SPECIFICATIONS
AT A GLANCE.
- Material
- FRP posts and panels; electrically non-conductive, non-magnetic, fire retardant
- Flash-over test
- Every batch; 138,000 V minimum
- Maximum tested flash-over
- 650,000 V
- Forced-entry standard
- ASTM F2781-15
- Panel mesh
- 1½" square
- Panel thickness
- 1"
- Standard height
- 96" above grade
- Post C/C
- 97.5" ±1.5
- Pier
- 12" dia × 42"
- Hardware
- 316 stainless steel, secure side
- Welding
- None
- Wind engineering
- ASCE 7, project-specific
- CSI section
- 32 31 00
- Origin
- Made in the USA
Warranty
Manufacturer warranty coverage for this product.
QualifierNo warranty certificate yet
